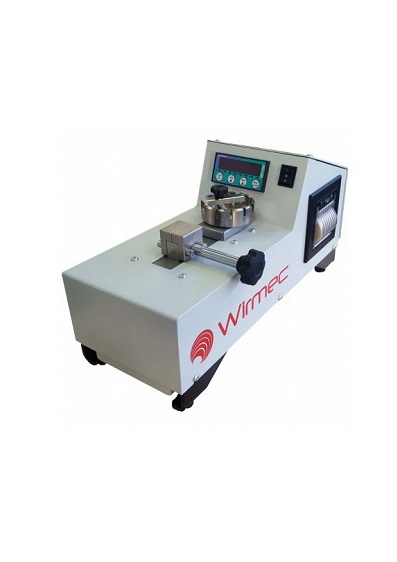

Motorized pull tester for to test the crimp force. It's compact and complete printer with ability to customize the header. It's supplied with a certificate of calibration.
Technical data:
● Force: 0÷1000N
● Resolution: 0.1N
● Error: ±0.5% F.S.
● Wire section: AWG32 – AWG10 ; 0.32 – 5,1 mm²
● Measure unit: Newton o Kilogram mi
● Speed: 30mm/min
● Gripper: 0 – 10mm
● Not destructive test
● Printer with customizable header
● Communication port: RS232 e RS485
● Dimensions mm (WxHxD): 225x245x470
● Weight: 16Kg
