Sumake SUEA-412L Electric Screwdriver

Add to Enquiry
Downloads
  • Description

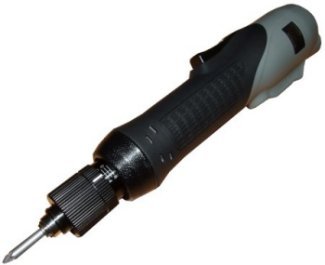

Sumake 412L Electric Screwdriver



High performance DC motor design for increased durability and flexibility

This is a brand new electric screwdriver range from Sumake featuring a new DC motor. The benefits of this new motor design are to improve durability and offer a wider range of torque and r.p.m - this is due to the high quality extra strong magnet, low electric current and stable rotation.

This is a low voltage, auto shut-off driver with a power supply especially designed for long use and with a high/low speed setting. Externally replaceable brushes offer greater ease of maintenance and high durability.

This is a highly stable screwdriver, not influenced by fluctuations in voltage and with a precise torque control, externally adjusted.  It has a cushioned grip for exceptional maneuverability and operator comfort. ESD models are available throughout the range.


Models in this range

Available as either a push to start (suffixed by P) or lever model (L), the following size options are offered:



Model Torque Range Upload
Speed
r.p.m
Weight Length
Power Source

Fastening Capacity

Machine
Screw Dia

Tapping
Screw Dia
  kgf-cm N.m High Low g mm   mm in mm in
SUEA-203L 0.2 ~ 3.50 0.02 ~ 0.34 1000 600 270 205 DC20Vor32V 1.0 ~ 2.3 0.04 ~ 0.09 1.0 ~ 2.0 0.04 ~ 0.08
SUEA-207L 0.5 ~ 7.0 0.05  ~ 0.69 1000 600 270 205 DC20Vor32V 1.4 ~ 2.6 0.06 ~ 0.10 1.4 ~ 2.3 0.06 ~ 0.09
SUEA-412L 1.0 ~ 12.0 0.1 ~ 0.98 1000 600 480 230 DC20Vor32V 1.6 ~ 3.0 0.06 ~ 0.10 1.6 ~ 2.6 0.06 ~ 0.10
SUEA-416L 3.0 ~ 16.0 0.3 ~ 1.57 1000 600 480 230 DC20Vor32V 2.3 ~ 3.5 0.09 ~ 0.14 2.3 ~ 3.0 0.09 ~ 0.12
SUEA-618L 5.0 ~ 18.0 0.5 ~ 1.76 1000 600 600 260 DC32V 2.0 ~ 3.5 0.08 ~ 0.14 2.0 ~ 3.0 0.08 ~ 0.12
SUEA-624L 7.0 ~ 24.0 0.69 ~ 2.35 750 450 600 260 DC32V 2.6 ~ 4.0 0.10 ~ 0.16 2.6 ~ 3.5 0.10 ~ 0.14
SUEA-630L 8.0 ~ 30.0 0.78 ~ 2.94 530 300 600 260 DC32V 3.0 ~ 5.0 0.12 ~ 0.20 3.0 ~ 4.0 0.12 ~ 0.16
SUEA-712LH* 5.0 ~ 12.0 0.49 ~ 1.18 2000   700 269 DC32V 2.3 ~ 3.5 0.09 ~ 0.12 2.3 ~ 3.0 0.09 ~ 0.12
SUEA-723L 6.0 ~ 23.0 0.59 ~ 2.25 1000 600 700 269 DC32V 2.6 ~ 4.0 0.10 ~ 0.16 2.6 ~ 3.5 0.10 ~ 0.14
SUEA-732L 10 ~ 32.0 0.98 ~ 3.14 750 450 700 269 DC32V 3.0 ~ 5.0 0.12 ~ 0.20 3.0 ~ 4.5 0.12 ~ 0.18
SUEA-748L 16 ~ 48.0 1.57 ~ 4.70 530 300 700 269 DC32V 4.0 ~ 6.0 0.16 ~ 0.24 4.0 ~ 5.0 0.16 ~ 0.20

All of the above are also available as push to start, the above list is not exhaustive so please phone and ask if you do not see the model you require listed - many models are also available in the high speed option (denoted by H). *Please note the high speed models should not be used with the PSU on low.



POWER SUPPLY


The standard power supply packed with the above screwdrivers is the SP-32HL60T.  This power supply offers the option of running at either low or high speed, by a simple flick of a switch on the top of the unit.

Like the full Sumake range this item is RoHs compliant and dimensions are as follows:

145 x 60 x 35mm, weighing 0.25kg - suitable for one screwdriver only

Electric Screwdriver with Screw Counter Power Supply

A further power supply with counter is also available - the SP-C32HL60T/C (this requires a different model of screwdriver - but to the same specification as those listed above).  The features of this power supply include a count up or down function, high and low running time settable limit, slow start option, alarm with LED and buzzer and auto zero function.






CALL US FOR MORE DETAILS
PHONE/FAX 0161 688 7246
