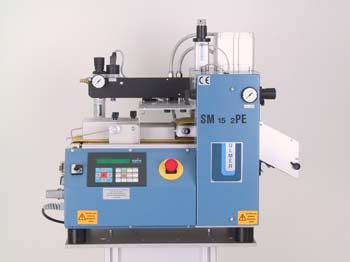

The SM15 2PE has a powerful servo-motor. The cutting length accuracy is approx. 1/10 of a millimeter.
The machine can be used for a wide range of materials, such as: PVC hoses, fabric hoses, flat cable, round cable, wire, stranded wire, foil, soft and hard rubber, PVC profiles, wire mesh, paper etc.
CALL US FOR MORE DETAILS PHONE/FAX 0161 688 7246
Technical details SM 15 2 P E
Cutting Range:
Width:
150 mm up to 300 mm
Height:
30 mm up to 40 mm
Cutting Speed:
10 mm
8400 pieces/hour
100 mm
6950 pieces/hour
1000 mm
2580 pieces/hour
10000 mm
360 pieces/hour
Technical data
Length:
670 mm
430 mm
570 mm
Weight:
60 kg
Power supply:
230V/50-60Hz/16A
Air supply:
6 bar
Air consumption:
1,35 l per stroke at 6 bar
Motor:
servomotor
Feed Speed:
1 m/sec.
Adjustable number of pieces:
1-99999
Length measurement:
electronically, with impulse generator
Length adjustment:
digitally, 1 to 99999 mm
Feed Unit:
toothed conveyor belts on top
and bottom
Synchronization of belts:
100%
Adjustment of upperbelt:
pneumatically high adjustment
to cutting material
Pulling force:
up to 20kg, depending on material
