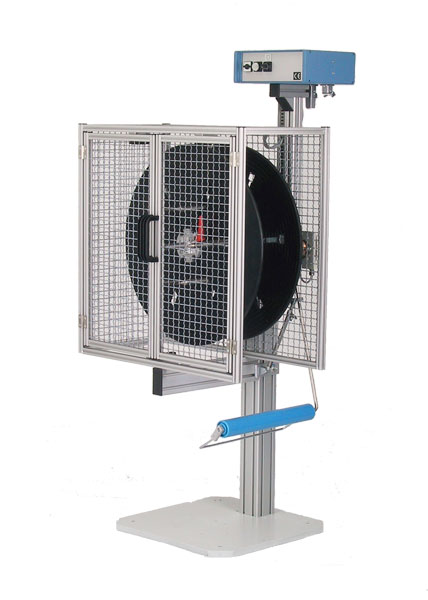

Ulmer ARG 30M The recoiler ARG30M is used for the reception of hose units, cord rings and light coils up to 30 kg.It is driven by an electrically adjusted direct current motor.
The velocity is regulated either by a dancer arm (see graphic) or an optional wire regulationDHS1000D.
options:
speed control DHS1000 D
on wish of the customer available with frequency controlled three-phase motor (MF)
power motor with 370W
CALL US FOR MORE DETAILS PHONE/FAX 0161 688 7246
technical data:
length:
700 mm
height:
1460 mm
width:
640 mm
weight:
55 kg
power supply:
230V, 50-60Hz, 10A
inner diameter:
min. 120 mm over center parts adjustable up to 400mm
out diameter:
max. 570 mm
coil admission:
min. inner diameter 20 mm, max. inner diameter 50 mm
admission width:
max. 220 mm
speed:
0-3 m/sec.
