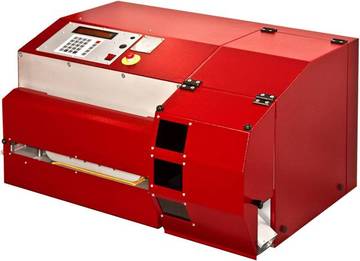

Tekuwa SMH - SMTH Cutting Machine

Add to Enquiry
  • Description


The cutting machines of the series SMH cut materials with a width of 40mm max. and a height of 30mm max..

Examples of application:     Flat materials, copper cords of up to 150mm² or 250mm² (depending on the cable), steel cables of up to Ø 12mm

The series divide two types of machines according to their cutting unit:

1.    SMH:         with V-cutting blades easy to change and made of HSS-Steel


2.    SMT H :      with a guillotine easy to change and made of HSS-steel

Both models are equipped with a microprocessor unit as standard: 100 programs with individually programmable production parameters such as speed, acceleration and brake ramps, length correction, cutting time.

The following features are common to both of the machines:

Belt Feed
Solid parallel driven belt feed supported by six rollers with a tractive power of more than 1000 N, which allows the machine to pull the material directly from heavy drums.


High cutting precision by DC-servo drive with freely programmable speed profiles, acceleration and brake ramps


For the length measuring, there's the choice between wheel measuring or drive measuring


Pneumatic opening and closing of the belt feed


Cutting Unit
Hydro-pneumatic cutting cylinder having a double effect and with an adjustable cutting force 0 – 15000 N or 0 – 30000 N






The machine is conforming with the present and current CE-guide lines.
