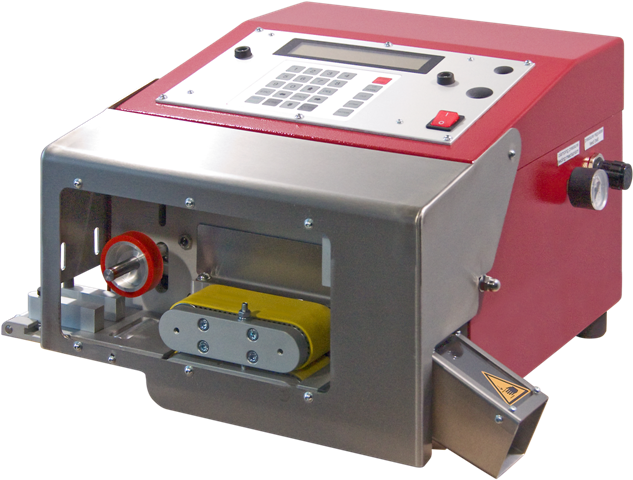

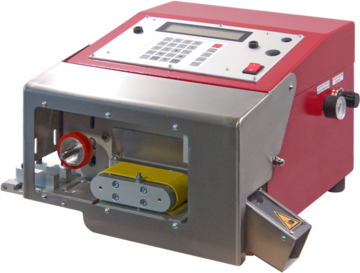

Cutting unit SC-50
Fast and precise electro-pneumatic cutting machine for cutting cables, plastic and insulating tubes, flat cables as well as other thin problematic materials
Feeder opening height: max. 30 mm
Feeder opening width: max. 50 mm
• Cutting capacity of up to 18000 cycles per hour
depending on material and length
• Fast and easy operating via the plastic foil keyboard
• Software includes item and order processing
• The installed Compact-Flash card of 128 MB permits to save up to:
- 99000 product programming
- 300 jobs with up to 100 single positions
• As standard the machine is equipped with short-circuit-proof interfaces for de-reelers, Prefeeder, coiling
machines and stackers as well as marking units and ink-jets
• AC-servo positioning drive
• Parallel driven belt feed supported by three rollers with pneumatic opening and closing device
• Cutting unit pneumatically operated with cutting and counter blade as well as blade guides made of
high-quality HSS tool-steel
• Marking programme
• Cutting force approx. 120 N
• Optionally there are different kinds of blades and belts available depending on the material
Options
• Additional guide block
• Wheel measuring
• TEKUWA PC Kit (PC software for connecting cutting machines to customary PCs)
• Special versions
