Tekuwa SC30 Cutting Machine

Add to Enquiry
  • Description
  • Technical Specifications

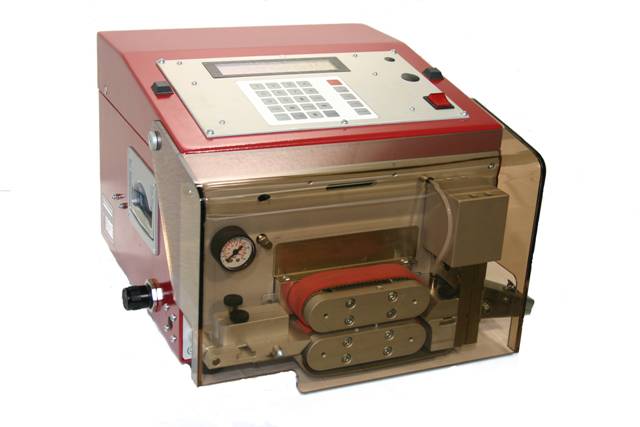

Cutting machine SC-30


Fast and precise electro-pneumatic cutting machine for cutting cables, plastic and insulating tubes, flat cables as well as other thin problematic materials






Feeder opening height:  15 mm max


Feeder opening width:  30 mm max




• Cutting capacity of up to 18000 cycles per hour
 depending on material and length

• Fast and easy operating via the plastic foil keyboard

• Software includes item and order processing

• The installed Compact-Flash card of 128 MB permits to save up to:
 - 99000 production programming
 - 300 jobs with up to 100 single positions

• As standard the machine is equipped with short-circuit-proof interfaces for de-reelers, Prefeeder, coiling
 machines and stackers as well as marking units and ink-jets

• AC-servo positioning drive

• Parallel driven belt feed supported by three rollers with pneumatic opening and closing device

• Cutting unit pneumatically operated with cutting and counter blade as well as blade guides made out
 of high-quality HSS tool-steel

• Marking programme

• Cutting force approx. 75 N

• Optionally there are different kinds of blades and belts available depending on the material





 • Additional guide block

 • Venturi system for plastic tubes and nylon braids (material is transported by air)

 • TEKUWA PC Kit (PC software for connecting cutting machines to customary PCs)


• Special versions


The machine is conforming with the present and current CE-guide lines.
Subject to technical alterations
