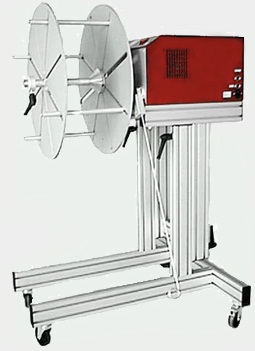

De-reeler with motorized axle for feeding cables, insulating tubes and other materials without any traction
• Regulation of mobile arm with safety breaking in case of cable jam • Basic speed adjustable by using the potentiometer • Maximum speed freely programmable • Acceleration and brake ramps freely programmable • Accident prevention by torque limitation, electrically programmable, mechanically adjustable • Start-Stop operation via external machine signal • Free signal from and to other machines • Short-circuit-proof motor regulation • Analog-entry for light sensor controlling Options • RS interface
CALL US FOR MORE DETAILS PHONE/FAX 0161 688 7246
Technical specifications
Power supply: 220/230 V
Watt consumption: 370 W
Revs: 0 - 200 rpm
Drum: Weight up to 30 kg
max. Ø 500 mm
max. width 600 mm
Diameter of shaft: 25 or 30 mm
Total machine weight: approx. 50 kg
Dimensions (machine casing): Height: 260 mm
Width: 375 mm
Depth: 430 mm
