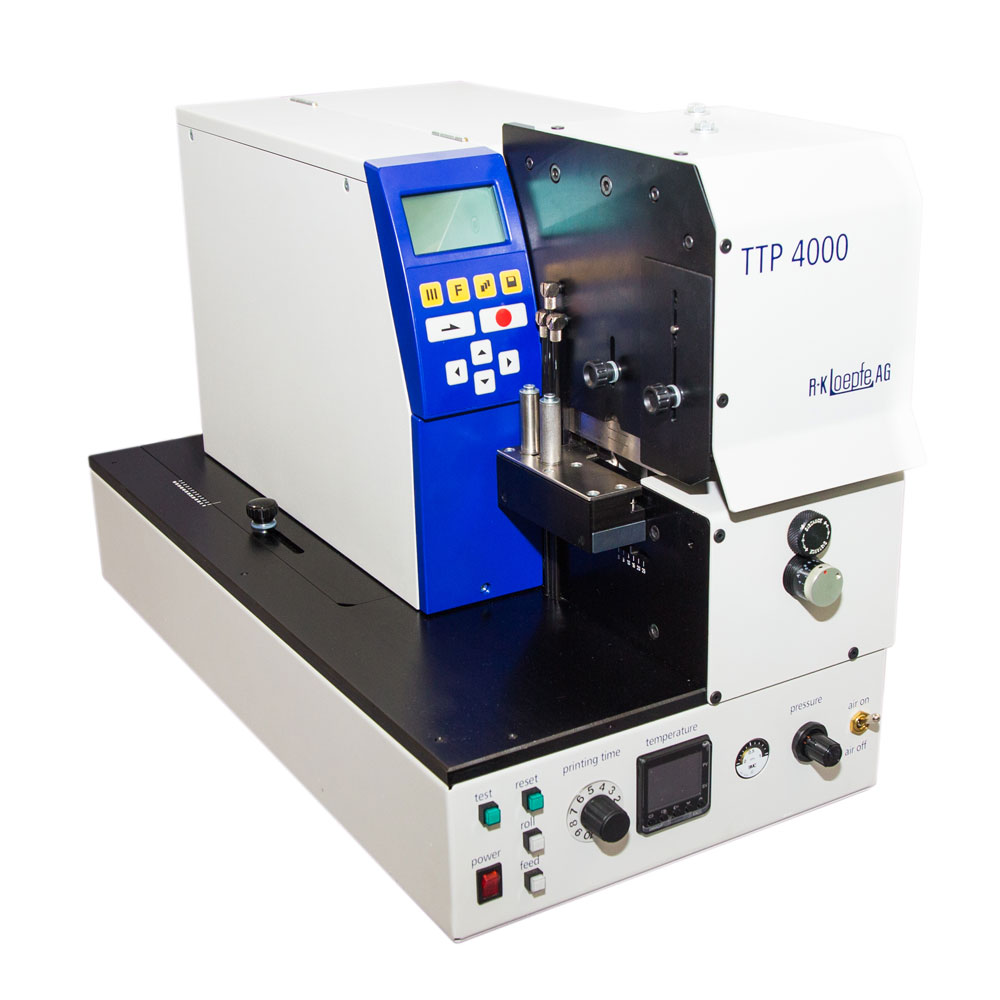

The TTP 4000 is a marking unit for cables. It allows for a variety of cable marking possibilities. Furthermore, it is very user friendly.
Marking possibilities
date field
consecutive numbering
logos
single-line text
multi-line text
Simple programming
directly on the unit or by PC keyboard or with a laptop
Max. Text face width
80 mm (3.15 inch)
Max. Text face height
20 mm (0.79 inch) in roll mode
Smallest cable outer diameter
ø 2 mm (0.08 inch)
Biggest cable outer diameter
ø 15 mm (0.59 inch)
Measurements Thermo foil
86 mm x 300 m (3.39 x 11’811 inch)
Measurements Receptor foil
100 mm x 150 m (3.94 x 5’905 inch)
Foil consumption
5 mm up to 30 mm (0.12 up to 1.18 inch)
Colors available
blackwhite
Text fieldVariable text fieldsVariable data baseNumbersConsecutive numberingLogosPicturesDate fieldetc.
Modes
Stroke modeRoll mode
Text gadget
External keyboardPC
Connection,Interface cables
RS-232-InterfaceParallel interfaceUSB-InterfaceEthernet 10/100 (Optional)
Thermo-Printer
COMPA 106/12, 300dpi
Measurements
Length
70 cm
Width
33 cm
55 cm open
Height
38 cm
65 cm open
Weight
33 kg
Connection
Power
230VAC 50HZ / 115VAC 60Hz
Air
0.4 - 0.6Mpa
