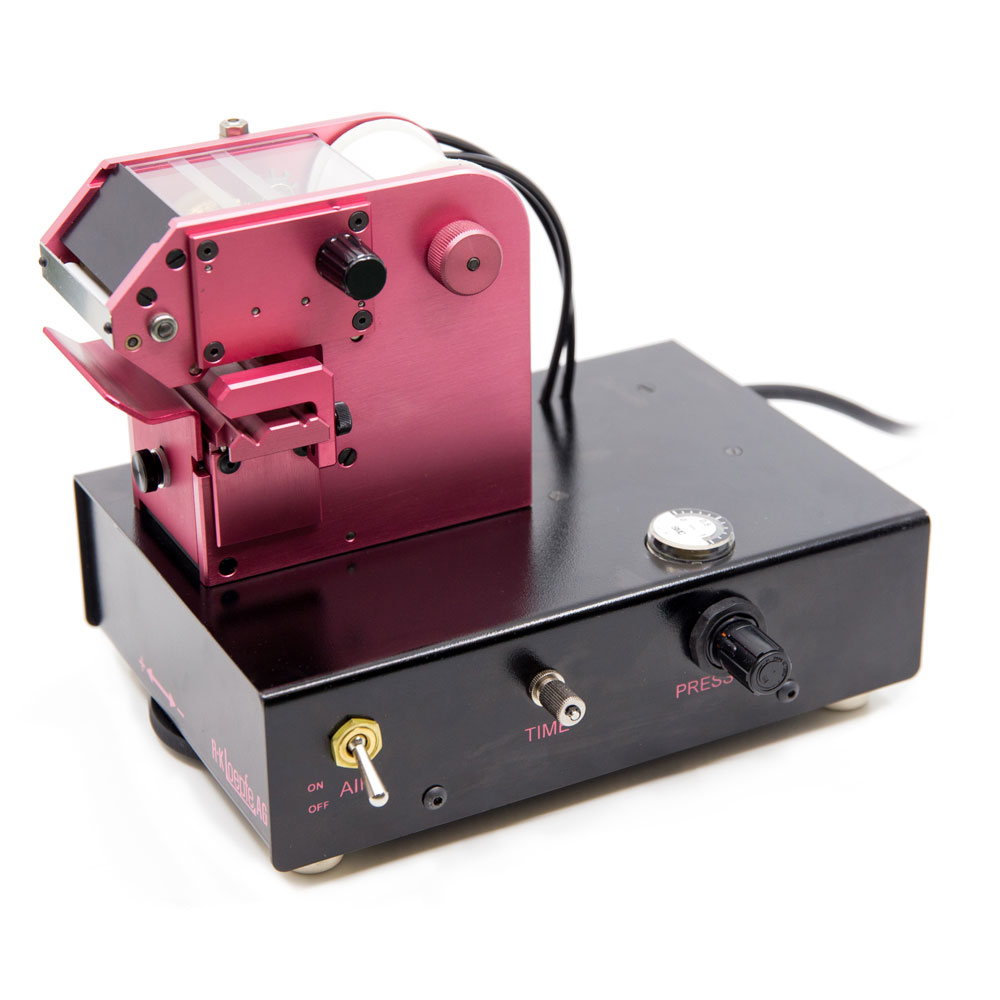

The TP15 cable marking machine is a bench top marking unit for small series.
Advantages: user friendly handling, flexibility, cost-effective.
It allows for easy legibility, lasting and oil resisting labeling and non-protruding markings.
The printing unit operates with the hot printing method using wear resistant printing foils.
Power supply
0,7 MPa
1 mm cable Ø minimum
Typeface dimensions (mm)
Flat, horizontal
2,0 and 3,0mm
A – Z
0 – 9
min. 12'000
max. 20'000 Marks per roll of foil
Technical DataNumber of printing wheels
15 (TP 15) Character Height 1.2mm – 2.3mm 10 (TP 10) Character Height 2.5mm – 4.0mm Working range cable outer diameter Cable Ø minimum 1.0mm Cable Ø maximum 12.0mm Selectable Sings per Printing wheel15 Printing Wheels (TP15)
max. 20 Sings according to your requirements 10 Printing Wheels (TP 10) max. 15 Signs according to your requirements
Number of Markings per foil
min. 12'000 / max. 20'000 per Roll of Foil
Foil type
Available in different colors and quality Dimensions
246 x 183 x 184mm
Weight
5.000 kg
