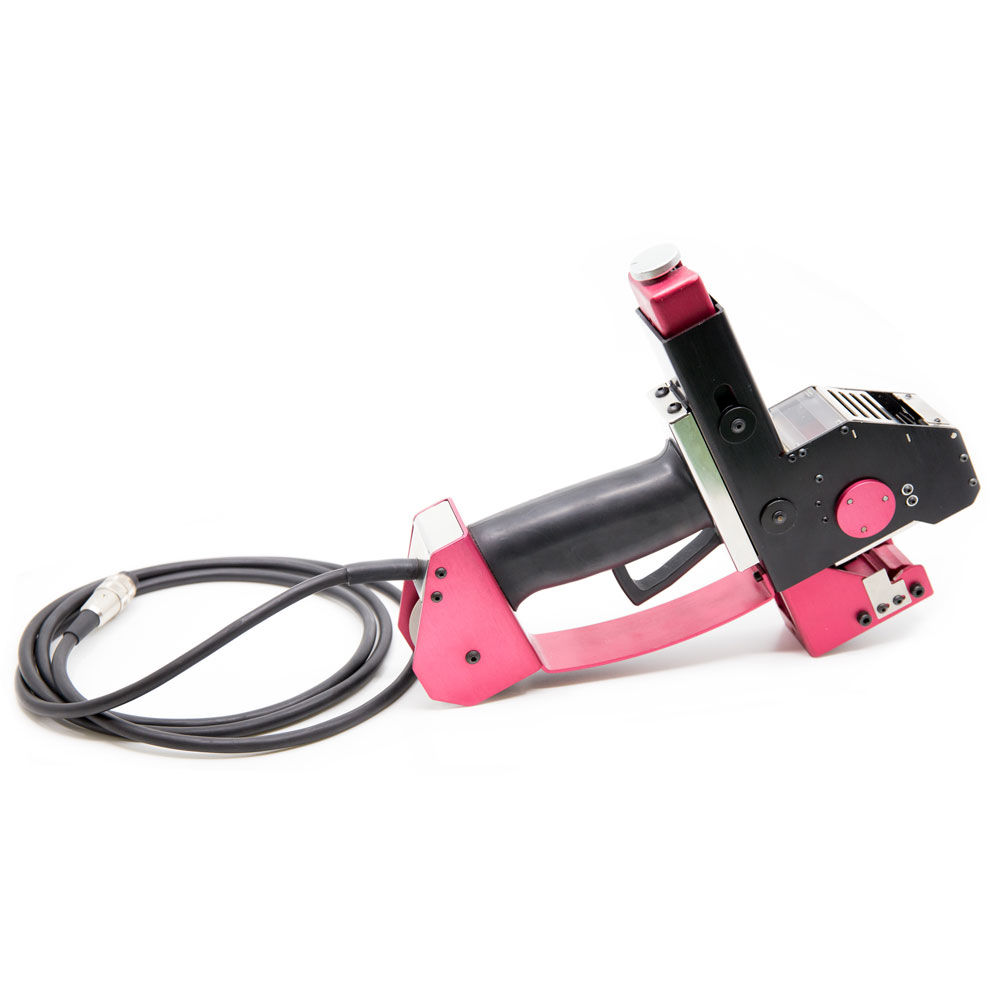

This is the ideal device for mobile activity.
Changing to different cable and wire diameters can be affected rapidly.
Because of its automated cable centering, work is greatly simplified.
The unit is easy to handle, economically efficient, and produces excellent readability with lasting and oil-resistant markings.
The unit operates on the proven hot stamping method using abrasion-resistant hot stamping foil
Technical Data
Number of Printing Wheels
Character Height 1.5mm to 2.3mm: 10 pieces
Character Height 2.5mm to 4.0mm: 7 pieces
Working Range Cable Outer Diameter
Cable diameter minimum 1.5mm
Cable diameter maximum 25mm
Signs per Printing Wheel
Character Height 1.5mm to 2.3mm: 28 signs (standard)
Character Height 2.5mm to 4.0mm: 20 signs (selectable)
Number of Markings per Foil
Min. 12'000 / Max. 20'000 markings
