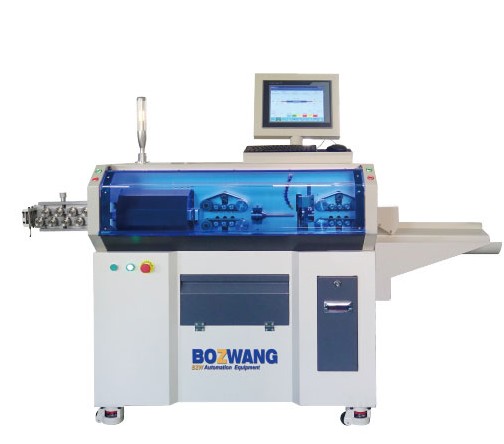

This machine is mainly aimed at processing new energy cable, power cable, coaxial cable, RF cable, communication cable, multi-core wire, shield net wire, which can achieve functions of automatic cutting, rotary stripping & multi-layer cable stripping.
The machine is equipped with advanced independent rotary cutting core, two sets of cutting and stripping blades, with the design of independent and adjustable double-blade frame, which make the cross section perfect after cutting.
The machine can cut and strip different types of wires and cables without tool change.
Cable parameters and different processing programs can be stored in the system, it takes about 5s to switch to different wire specifications.
More than one layer can be stripped on both ends of the wire.
The machine is multi-functional, there have been reserved some communication ports for connecting auxiliary devices.
Outer Diameter: Φ2-14mm
Stripping Range: 4-25mm²
Cutting Length: 0.1-100000mm
Cutting Precision: (0.2+0.002*L)
Drive: Belt conveyor, 8 wheels independently servo driver
Stripping Type: Rotary & stripping cutter
Stripping Length: Wire Head 0.1-200mm Wire end 0.1-100mm
Stripping Layer: 6 layers
Stripping Speed: 450-650pcs/H
Power: AC220V/110V 50/60Hz
Motor: 2.6KW
Air Pressure: 0.4-0.6Mpa
Weight: 360KG
Dimensions: 1120 x 720 x 1450mm
Display Mode: Touch screen
