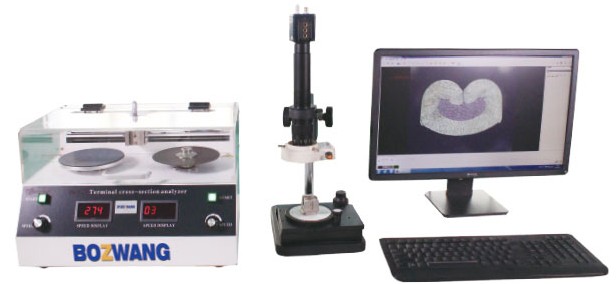

Mainly used on cross section testing after terminal crimping.
Core testing components is imported from Germany with long service life.
Fast analysis technology of new terminal crimping.
The processing of cutting & grinding is in the same chamber, to ensure consistency of the direction of the cutting & grinding.
Efficiently saving time of operation and easy maintenance.
The transmission technology of Japan made high precision ball screw can effectively ensure the cutting precision, and the grinding technology of Z-axis fine adjustment.
With imported ultra-thin cutting disk, it overcome the defect of deformed terminal.
High measuring precision, stable performance, strong capability of resisting disturbance.
Brushless motor, low consumption, dual motor independent control, stepless debugging.
1The rotary data collecting system, which can automatically choose the related speed for the different terminals.
Measure Range: 0.01-150mm²
Cutting Speed: 0. – 4000rpm (Speed Adjustable)
Grinding Speed: 0. – 4000rpm (Speed Adjustable)
Metallographic Abrasive Paper: 1200#
Cutting Disk: Φ105×0.5mm
Rotation Rate: 0. – 4000rpm
Voltage: 220V 50Hz
Power: 180W
Weight: 30KG
Dimensions: 457 x 329 x 300mm
