320S Ferrule Crimping Machine

Add to Enquiry
Downloads
  • Description
  • Video

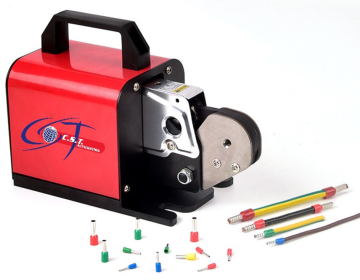

New Model Pneumatic Ferrule Crimping Machine 320S

Different from manual crimp tools, the 320S series crimpers are lightweight and very efficient, so to reduce the physical force required by hand tools but offer a more reliable crimping effect.

The operation is very simple and standardized, even novices can handle this.

The 320S series crimping machines are activated by a foot pedal, the operator can place the terminal and wire with two hands, which has achieved a safer operation, reducing crimping cost and improving crimping quality.



Specification

Model - 320S Pneumatic Ferrule Crimper

Function - Loose ferrule / end sleeve, square profile crimping

Capacity  - 10mm²

Crimping Force  - 13KN

Locator - 3 pcs

Air Regulator - Yes

Activation - Foot pedal

Air Supply - 0.3 - 0.8 MPa (clean and dry air)

Dimensions - L151 x W100 - H150mm

Weight - 4KG

CE-Conformity - Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
