GLW MC25 Stripping & Crimping Machine

Add to Enquiry
Downloads
  • Description
  • Video

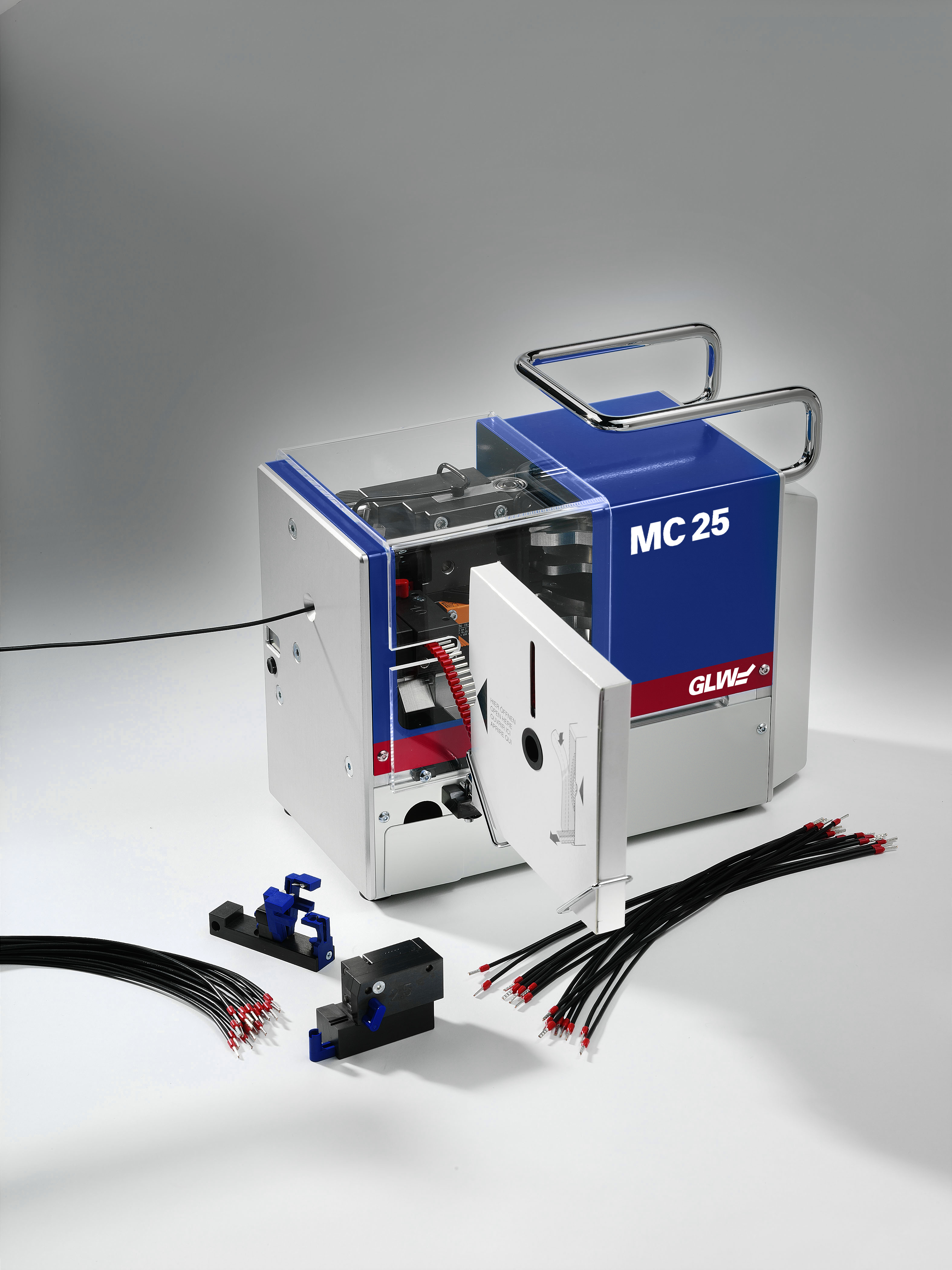

The MC 25 is a very lightweight machine, weighing just 12KG and thanks to its carrying handle it can be moved easily between different job sites.



It does not require pressurized air, but only a 230 V mains connection.



It takes only 1.5 seconds to crimp and strip the insulation.



The MC 25 processes wire end sleeves with a cross section of 0.5mm to 2.5mm² and a standard length of 8 mm.

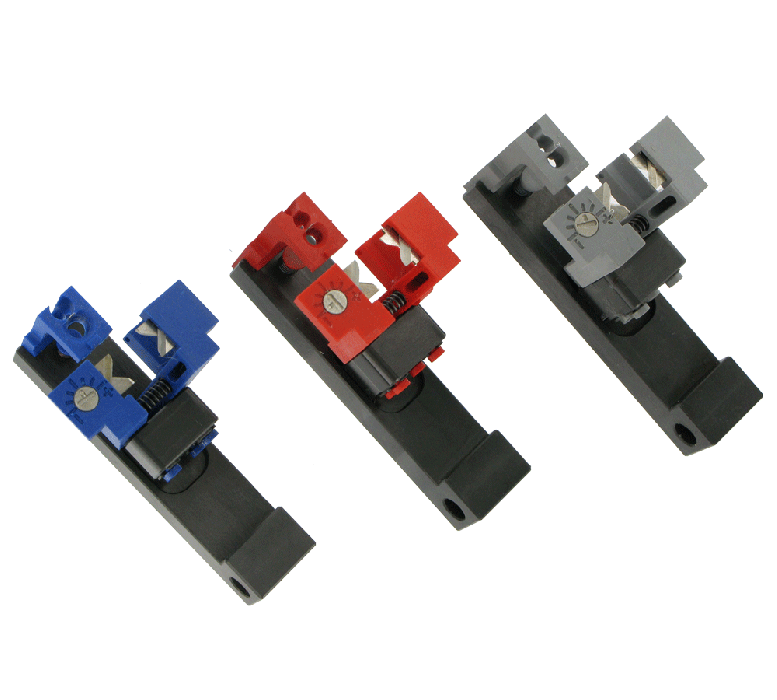

You can change the applicator for the diameter of the sleeves in a matter of seconds without any additional tools. Just snap it in and off you go!

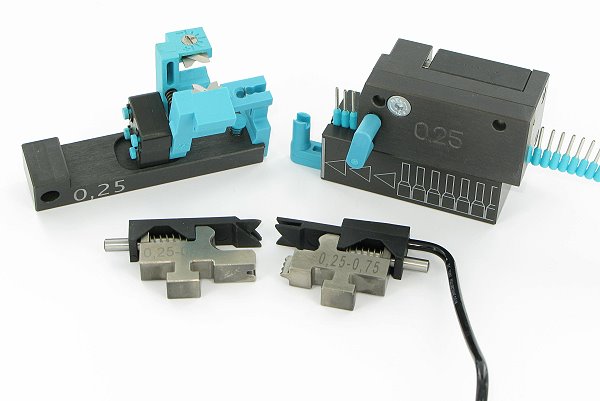

All applicators are clearly arranged in a kit that comes with the crimper.

Reliable operation thanks to an advanced microprocessor-controlled cam drive.

The stripping unit is fitted with V-blades. It can be used for most commercially available conductors.

Tape-mounted wire end sleeves are fed into the machine via a dispenser fitted to its right side.
