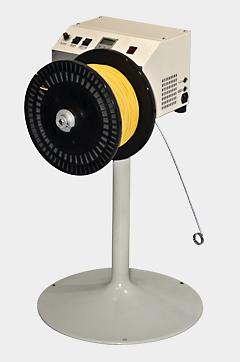

Tekuwa PFA-115 Cable De-Reeler

PFA-115
De-reeler with motorized axle for prefeeding cords and other materials without any traction


• Basic speed adjustable by using the potentiometer
• Maximum speed freely programmable
• Acceleration and brake ramps freely programmable
• Accident prevention by torque limitation, electrically programmable, mechanically adjustable
• Start-Stop operation via external machine signal
• Free signal from and to other machines
• Short-circuit-proof motor regulation
• Analog-entry for light sensor controlling

 Options
 • RS interface
 • Foot

CALL US FOR MORE DETAILS
PHONE/FAX 0161 688 7246

Technical specifications

Power supply:    220/230 V
Watt consumption:   200 W
Revs:     0 - 200 rpm

Drum:     Weight up to 15 kg
      max. Ø 350 mm
      max. width 300 mm

Diameter of shaft:   18 mm
Length of shaft:
      Model A = 350 mm

      Model B = 450 mm

      Model C = 550 mm

Total machine weight:    approx. 20 kg

Dimensions (machine casing):  Height: 290 mm

            Width: 270 mm

            Depth: 360 mm

The machine is conform with the present and current CE-guide lines.
Subject to technical alterations
