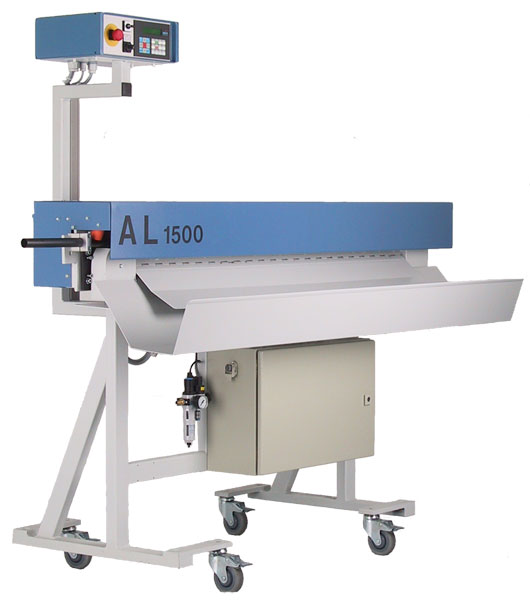

Ulmer ALSeries
The delivery trays of the AL series are automatic, electro-pnaumatic delivery systems, which work in line with cutting and stripping machines.
Is it possible to deliver material up to 12mm diameter and a minimum length of 500mm. A constant running transport belt pulls the material into the device.
A sensor system on the infeed nozzle recognises the end of material and starts the output action.
The pneumatically moved delivery tunnel puts the material into the tub. Material with over length can also be delivered because of the open end of the delivery tunnel. As an option the delivery tray can be equipped with an intermediate tray, which allows the delivery of material bundles.
options:
delivery device mobile on rolls with brake
delivery device with intermediate tray
delivery device with double tunnel up to 4m length
delivery device for larger diameters (on inquiry)
accessories for short length
technical data:
height:
1700 mm
width:
1600 mm
input height:
adjustable from 900 - 1100 mm
power supply:
230V, 50-60Hz, 10A
air supply:
6 bar
delivery length:
min. 0,5 m, max. open
diameter range:
0,5 - 19 mm², thinner and thicker ranges on inquiry
delivery cycle:
200 Milliseconds, continously adjustable
type
length
weight
AL 1500
2000 mm
160 kg
AL 8000
8500 mm
520 kg
AL 2000
2500 mm
190 kg
AL 9000
9500 mm
570 kg
AL 3000
3500 mm
260 kg
AL 10000
10500 mm
600 kg
AL 4000
4500 mm
330 kg
AL 12000
12500 mm
730 kg
AL 5000
5500 mm
380 kg
AL 15000
15500 mm
850 kg
AL 6000
6500 mm
400 kg
