The FA600 is an unwinding machine and is designed and manufactured entirely (mechanical, electrical and software) internally at SAVOTEC Italy and is complete CE certificated.

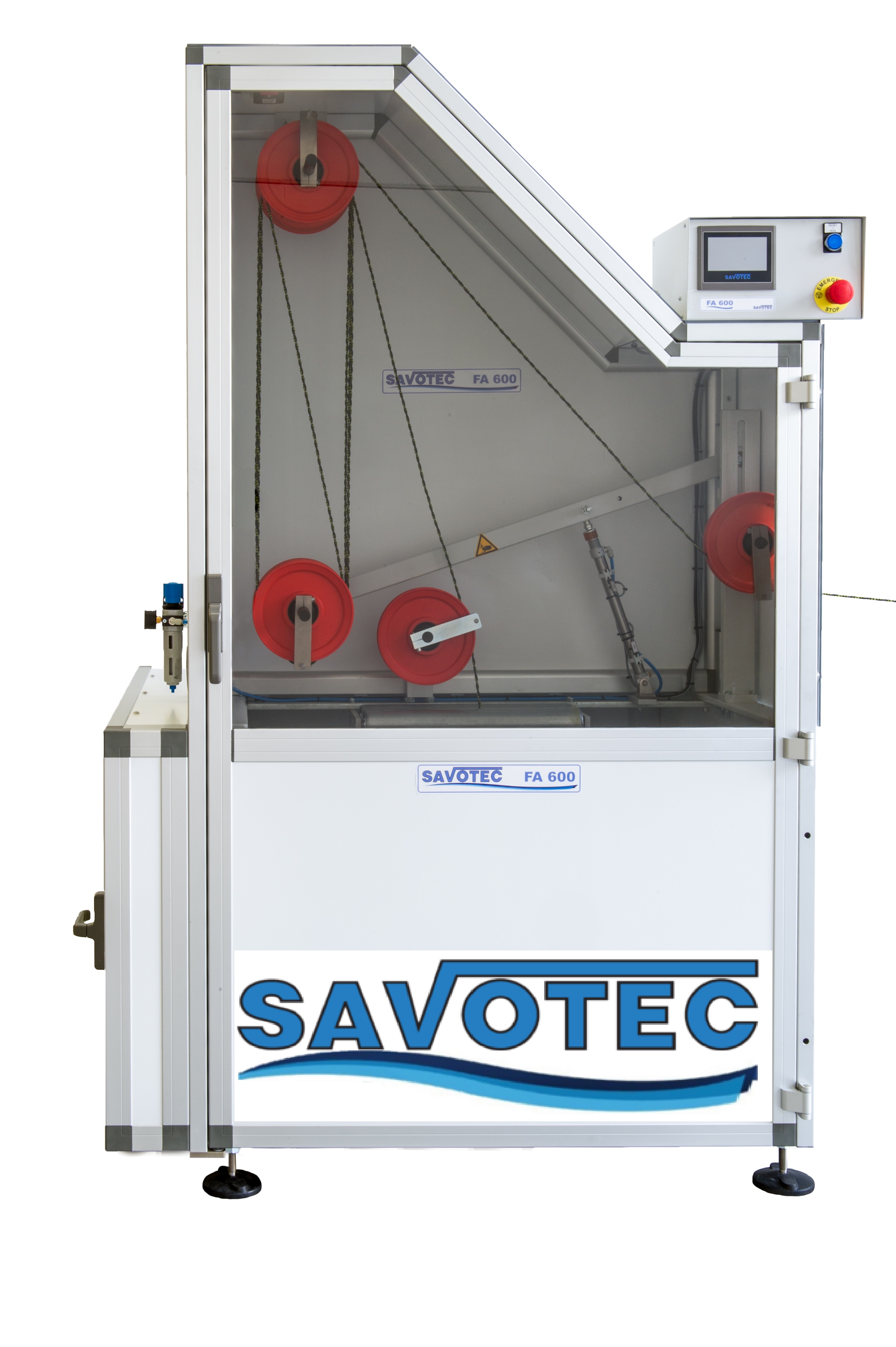

The model FA600 is a motorized unwinding machine complete with compensator pulley.
The FA600 is suitable for unwinding reels of cable, with simple and fast loading of the coils.
Thanks to the two gripping arms, the coil is taken laterally and then raised, these adjustments are manual but with easy access making it practical, simple and quick to exchange the coil, but above all without operator fatigue.
Operator panel for all machine settings, speed accelerations, decelerations, 3 languages, diagnostics (INPUT and OUTPUT) and messaging of alarms.
The FA600 has a system for adjusting the speed of the reel according to the position of the arm, which makes it very fast in the unwinding of the cable cord.
Height-adjustable cable outlet, to accommodate various heights of cutting-stripping machine.
Maximum diameter ext. cable workable standard 10 mm, coils cable from400 mm to 600 mm outside diameter, maximum weight reel 150 Kg.,
