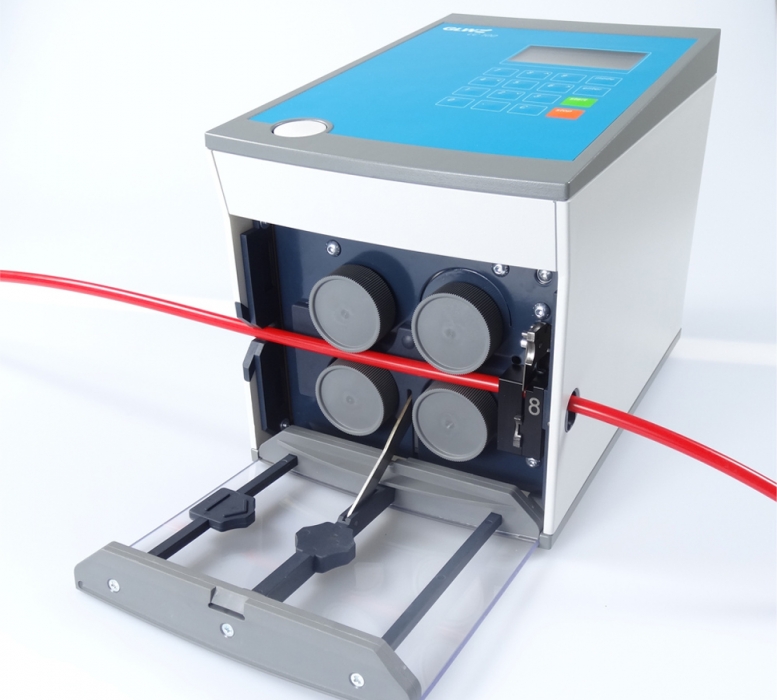

GLW LC100 SL Tube Cutting Machine

Add to Enquiry
Downloads
  • Description

Cut tubes to length quickly and precisely

  • Precise, straight cut
  • Easy and safe to handle
  • Light weight allows easy transportation

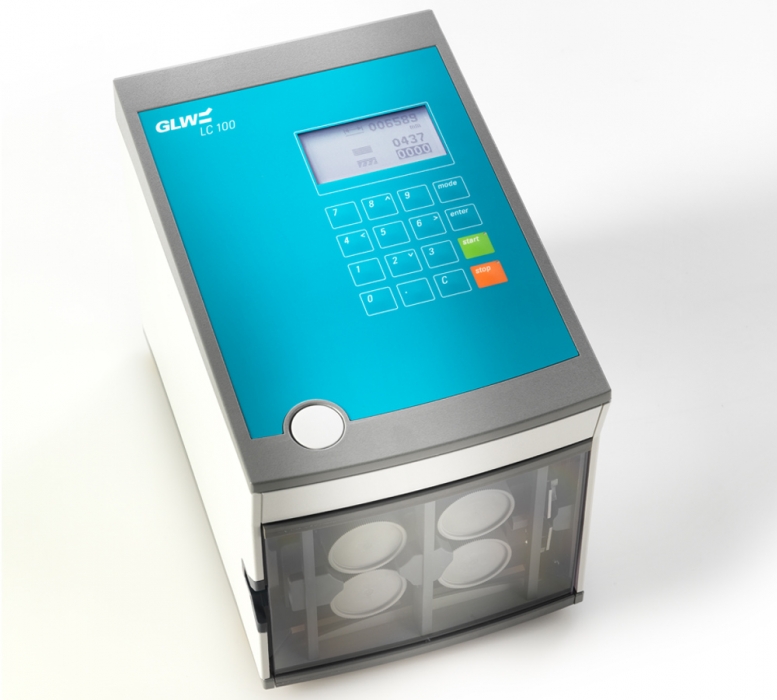

  • Simple and quick input due to clear graphic display and control panel
  • Enhanced measurement accuracy due to independent measuring system.

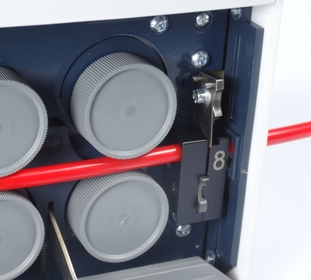

When cutting tubes to length, an exact cut, along with the length, plays a decisive role. Thanks to the appropriate tube guide and the special blade, the LC 100SL provides you with a precise, straight cut. The separation of the drive and measuring rollers provides a high level of measurement precision.

The processing is imaginably simply. The front flap opens with the touch of button and the material is inserted. When the flap is closed, the measurement and transport rollers automatically adjust to the diameter. The clearly designed control panel with display simplifies the quick input of the length and number of pieces. Press the start button and production begins.

Areas of use

  • PA, PE, PU, PTFE, rubber and silicon tubes
  • Plant construction
  • Medical technology

Accessories



Technical data LC 100SL
Max. tube outer diameter: 8 mm (0,32“)
Gauge length: 2 mm - 1000 m
Feed speed: 0.04 -  0.5 m / sec
Power supply: 100 – 240 VAC /  50-60 Hz
Power consumption: 150 VA
Dimensions (L x W x H) 301 x 194 x 228 mm (11.9 x 7.7 x 9.0“)
Weight: 10 kg / 22 Ibs.
