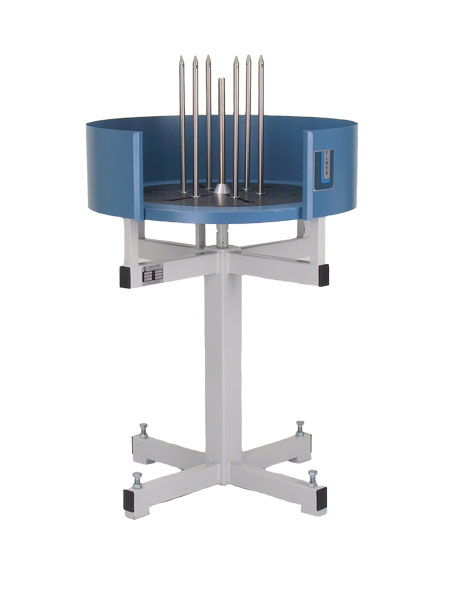

Ulmer ARG Unwinder
The unwinder ARG is designed to unwind hose coils like corrugated tubes, hydraulic and high press air tubes and similar materials. The rotary table sits on ball bearings and allows an easy unwinding process from the ARG unit. The 250mm high sheet metal jacket prevents that the material can fall from the device. An integrated brake reduces the run after action of the table after a strong pulling action. Optionally the ARG unit can be equipped with a spring brake. The load of this brake system is controlled by a dancer arm.
CALL US FOR MORE DETAILS PHONE/FAX 0161 688 7246
type
length
width
height
weight
ARG 600
760 mm
1200 mm
25 kg
ARG 800
960 mm
30 kg
ARG 1000
1160 mm
40 kg
ARG 1200
1360 mm
50 kg
ARG 600 T
550 mm
15 kg
ARG 800 T
20 kg
ARG 1000 T
ARG 1200 T
